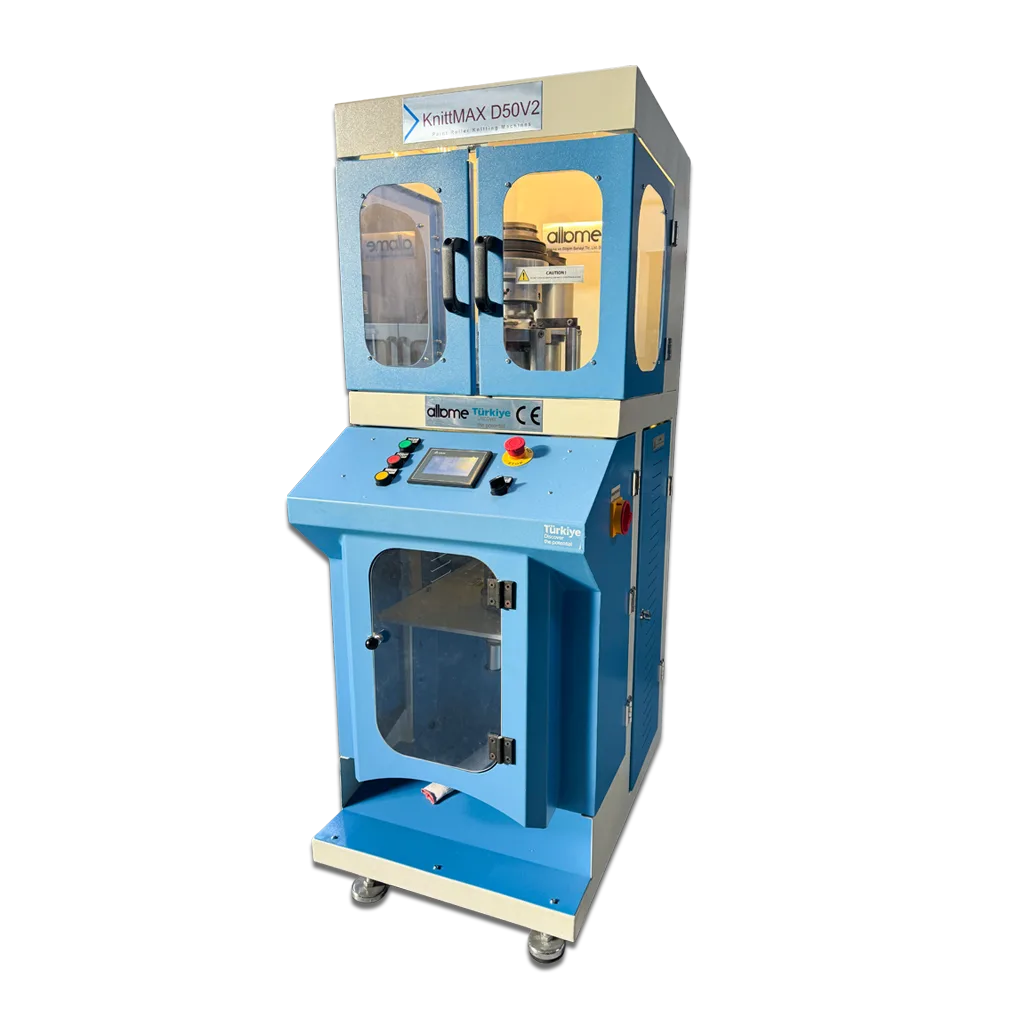

KnittMAX D50V2 is an industrial paint roller knitting machine designed for paint roller manufacturers, which can be customized to order. Its structure, suitable for working with different yarn types, knitting patterns, and roller sizes, offers flexible and stable production.
⸻
Technical Specifications
Power & Pneumatics
• Power Supply: 220 V AC / 50 Hz
• Pneumatic Pressure: Min. 4 Bar – Max. 6 Bar
⸻
Mechanical System
• Mechanically Adjustable Towing Mechanism with Compensator
• Ergonomic and Clean Industrial Design
• Chrome Coated Working Components
• Adjustable Roller Length System
• Adjustable 8-Spool Yarn Support System
⸻
Drive & Motors
• Main Drive Motor: 1.5 kW
• Cutting Blade Motor: 0.25 kW
• Total Electrical Consumption: Approx. 1.75 kWh
⸻
Production Capabilities
• Maximum Roller Diameter: Ø 50 mm
• Adjustable Roller Length
• Knitting Speed:
• 28 cm roller knitted in approximately 1 minute (for 25 cm length)
• Multi-color and pattern-capable knitting structure
⸻
Control & Electronics
• PLC: Delta DVP 14 SS2
• Touch Panel: Delta DOP-B Series – 8” Touchmatic Panel
• Electronic Spindle Meter Encoder
• Electronic Yarn Switching System
• Adjustable Parameters via Control Panel:
• Spindle Speed
• Roller Length
• Production Quantity Limit
• Color & Pattern Settings
• Product Quantity Counter
⸻
Dimensions & Weight
• Machine Width: 500 mm
• Machine Length: 1200 mm
• Machine Height: 600 mm
• Total Weight: Approx. 180 kg
⸻
Warranty & Support
• Warranty Period: 1 Year
• Spare Parts Support: Up to 10 Years
