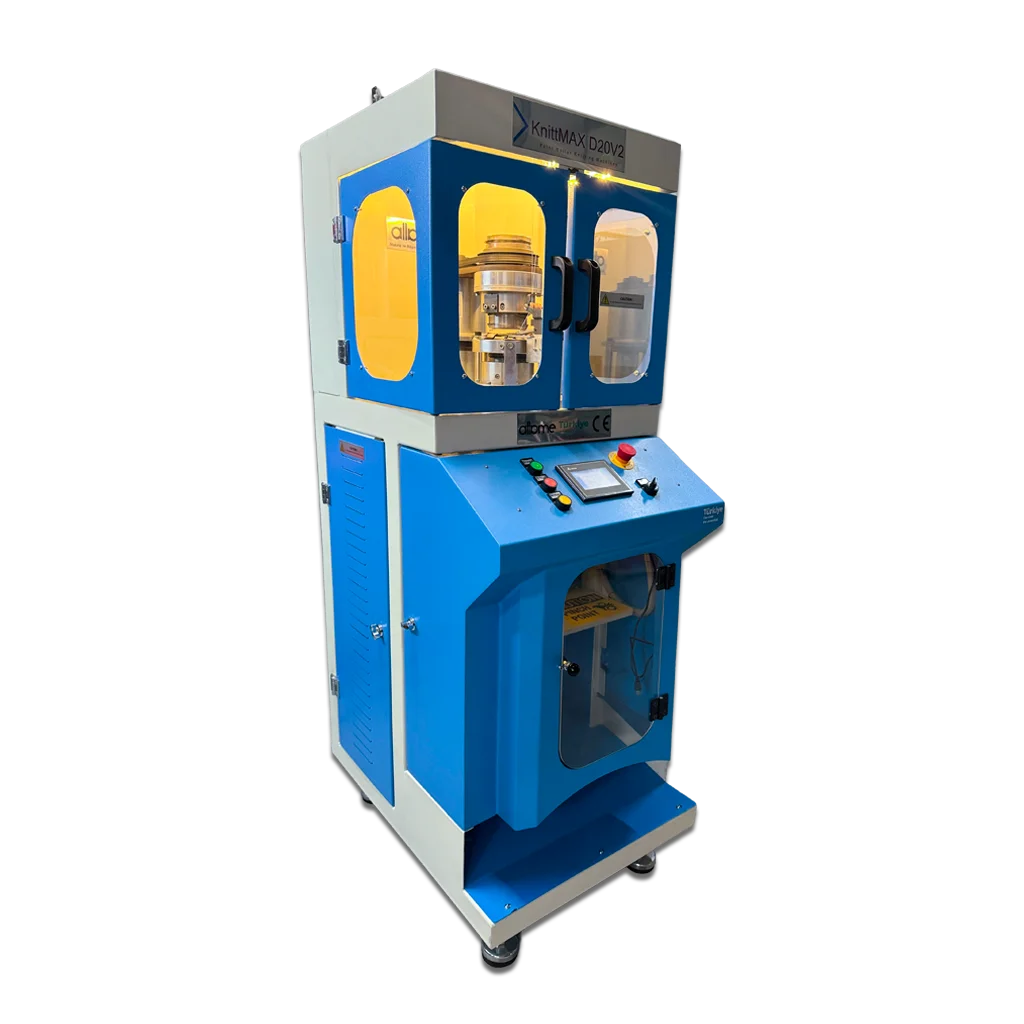

KnittMAX D20V2 is designed for manufacturers focusing on smaller diameter paint rollers while maintaining the same production quality, control precision and flexibility offered by the D50V2 model.
The machine shares the same mechanical structure, control system and production philosophy as the D50V2, with a reduced roller diameter capacity.
⸻
Technical Specifications
Power & Pneumatics
• Power Supply: 220 V AC / 50 Hz

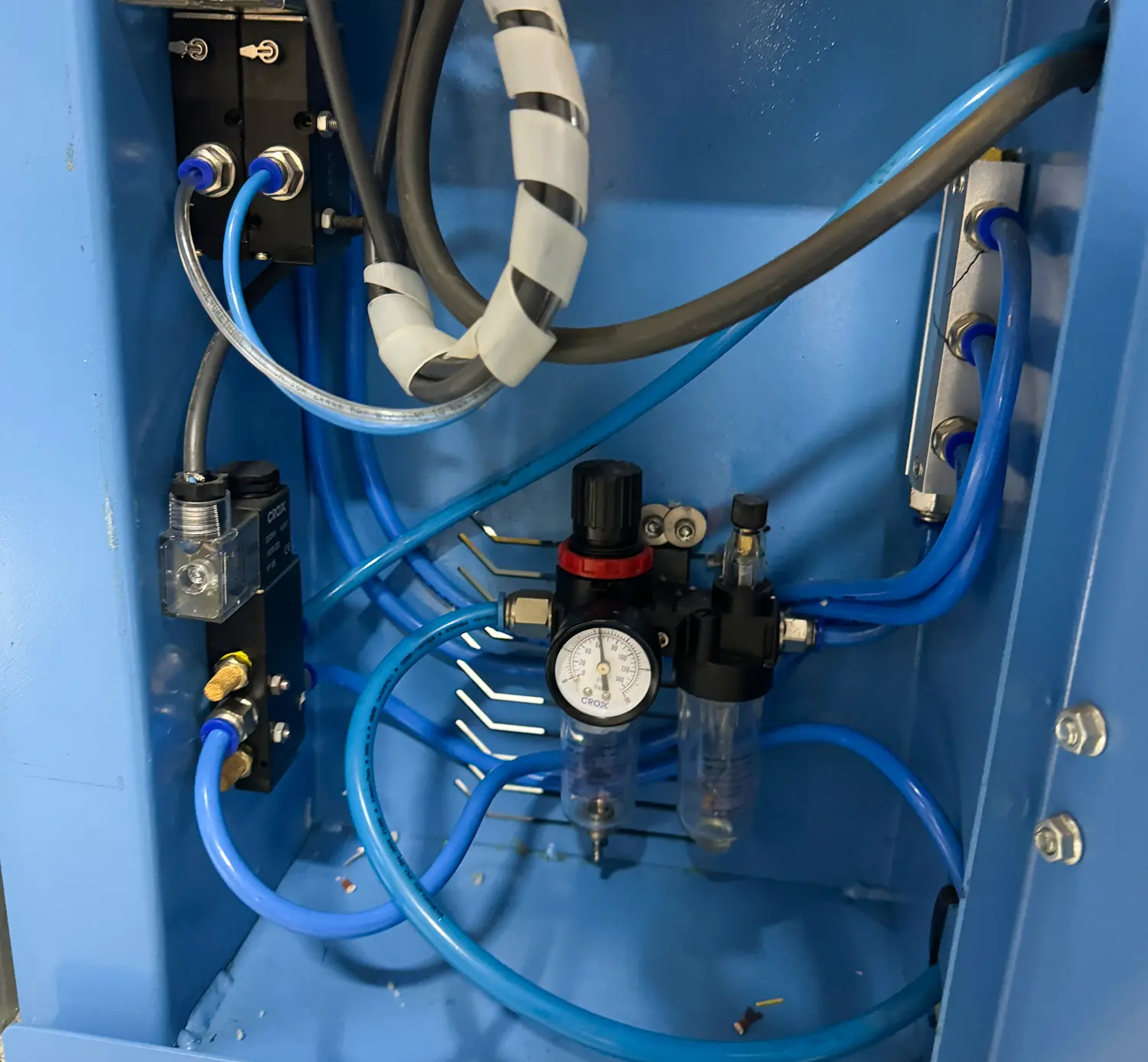

• Pneumatic Pressure: Min. 4 Bar – Max. 6 Bar
⸻

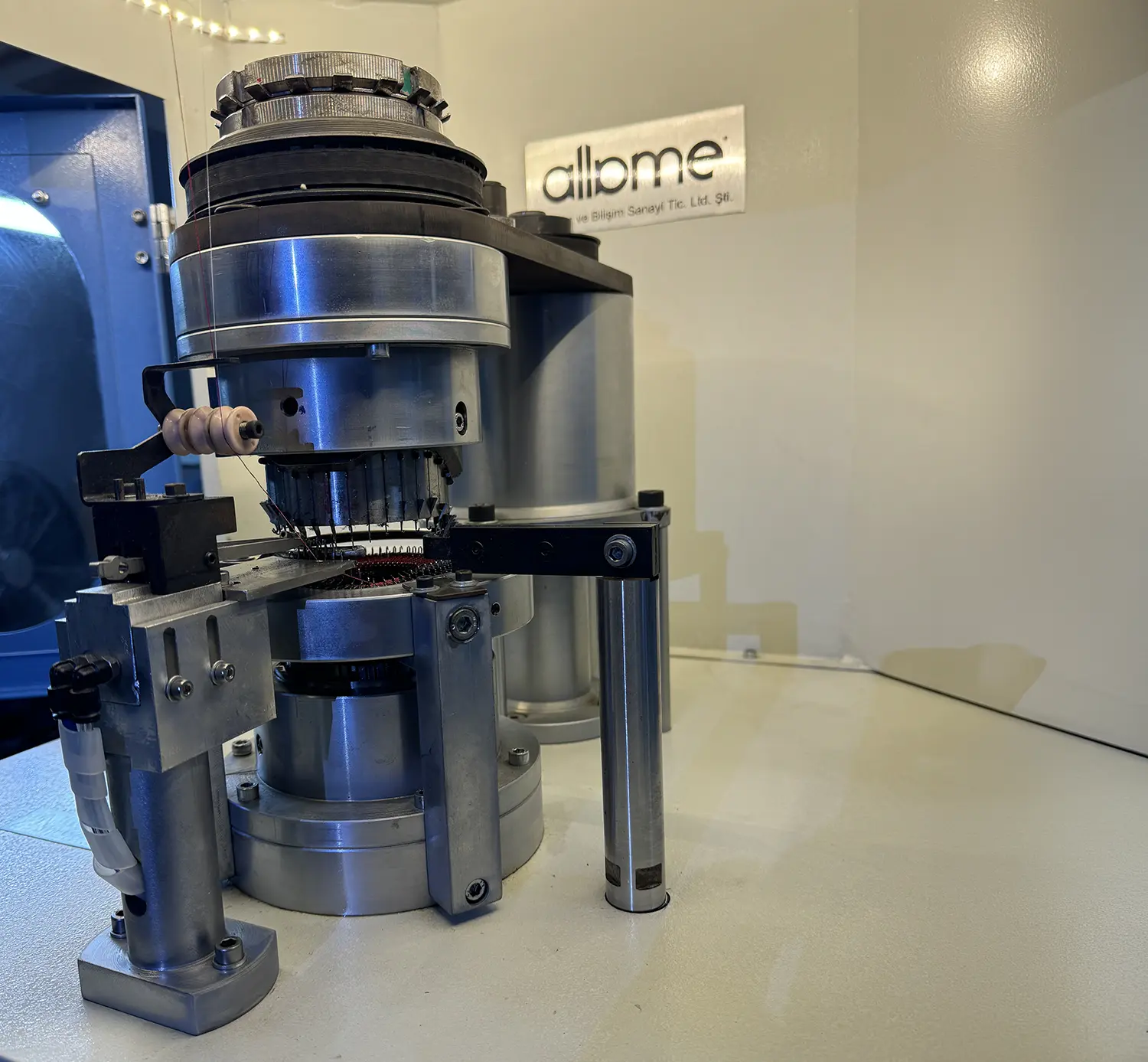

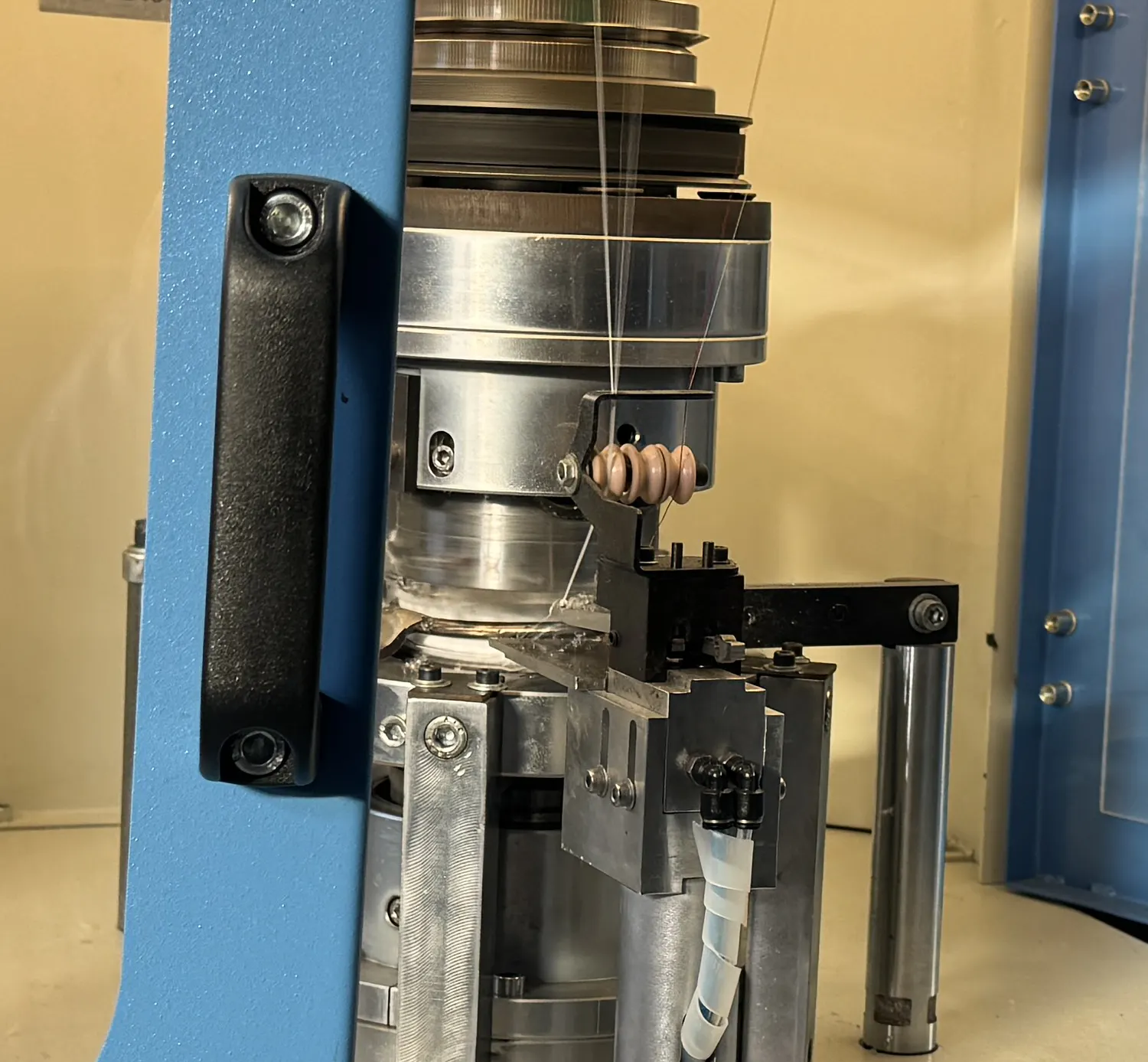

Mechanical System

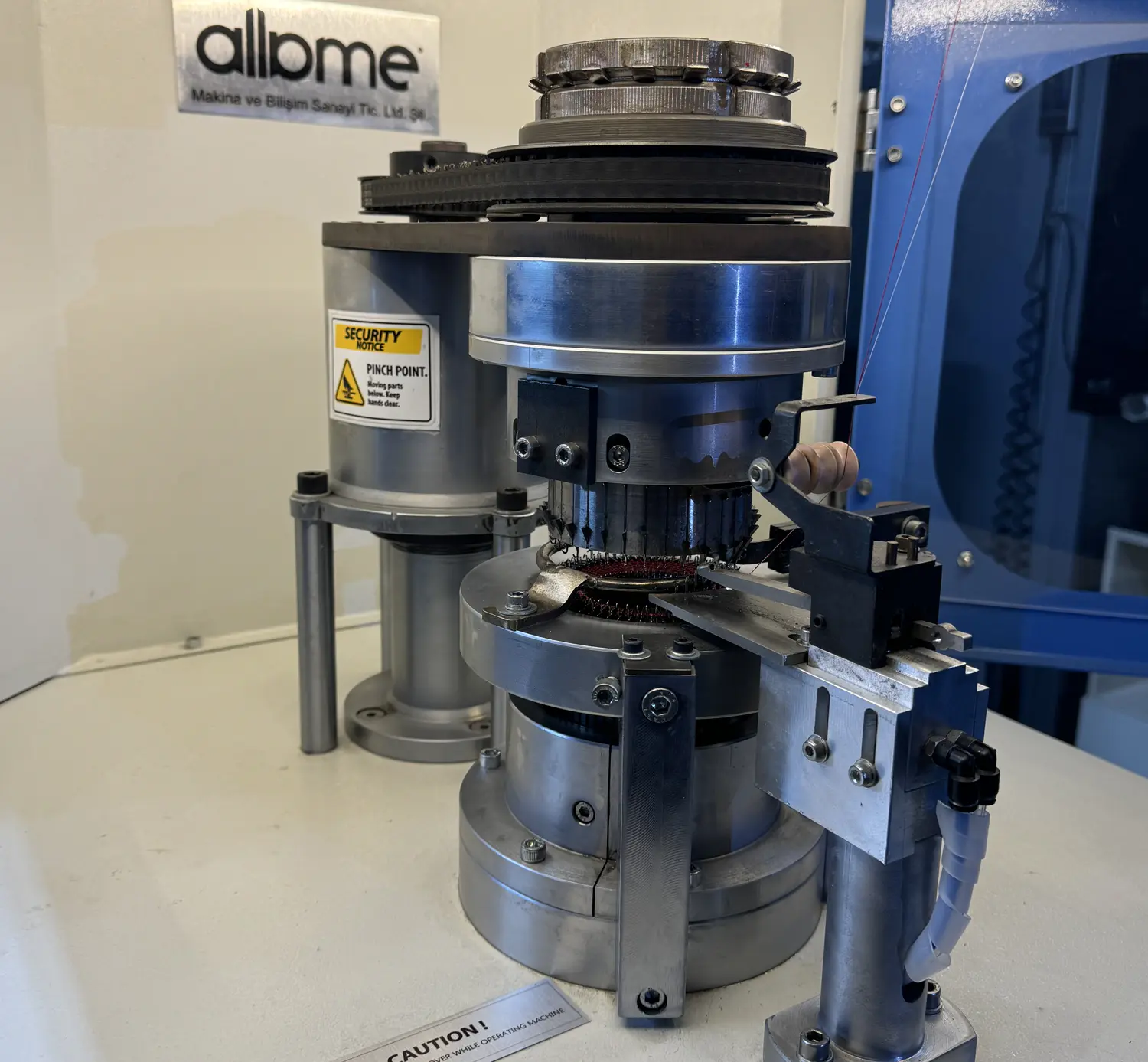

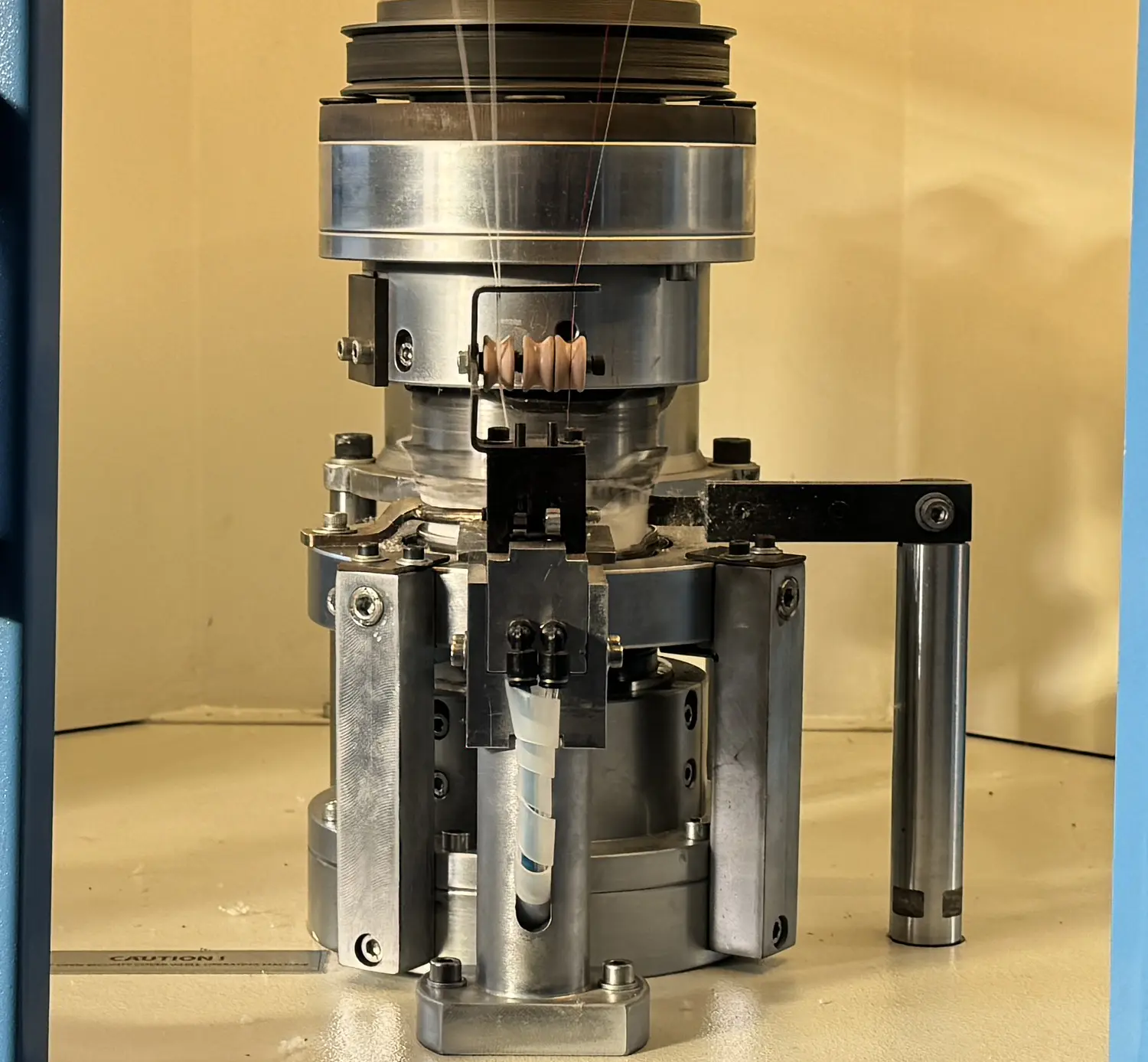

• Mechanically Adjustable Towing Mechanism with Compensator
• Ergonomic and Clean Industrial Design
• Chrome Coated Working Components
• Adjustable Roller Length System
• Adjustable 8-Spool Yarn Support System
⸻
Drive & Motors
• Main Drive Motor: 1.5 kW
• Cutting Blade Motor: 0.25 kW
• Total Electrical Consumption: Approx. 1.75 kWh
⸻
Production Capabilities
• Maximum Roller Diameter: Ø 20 mm
• Adjustable Roller Length
• Knitting Speed:
• 28 cm roller knitted in approximately 1 minute (for 25 cm length)

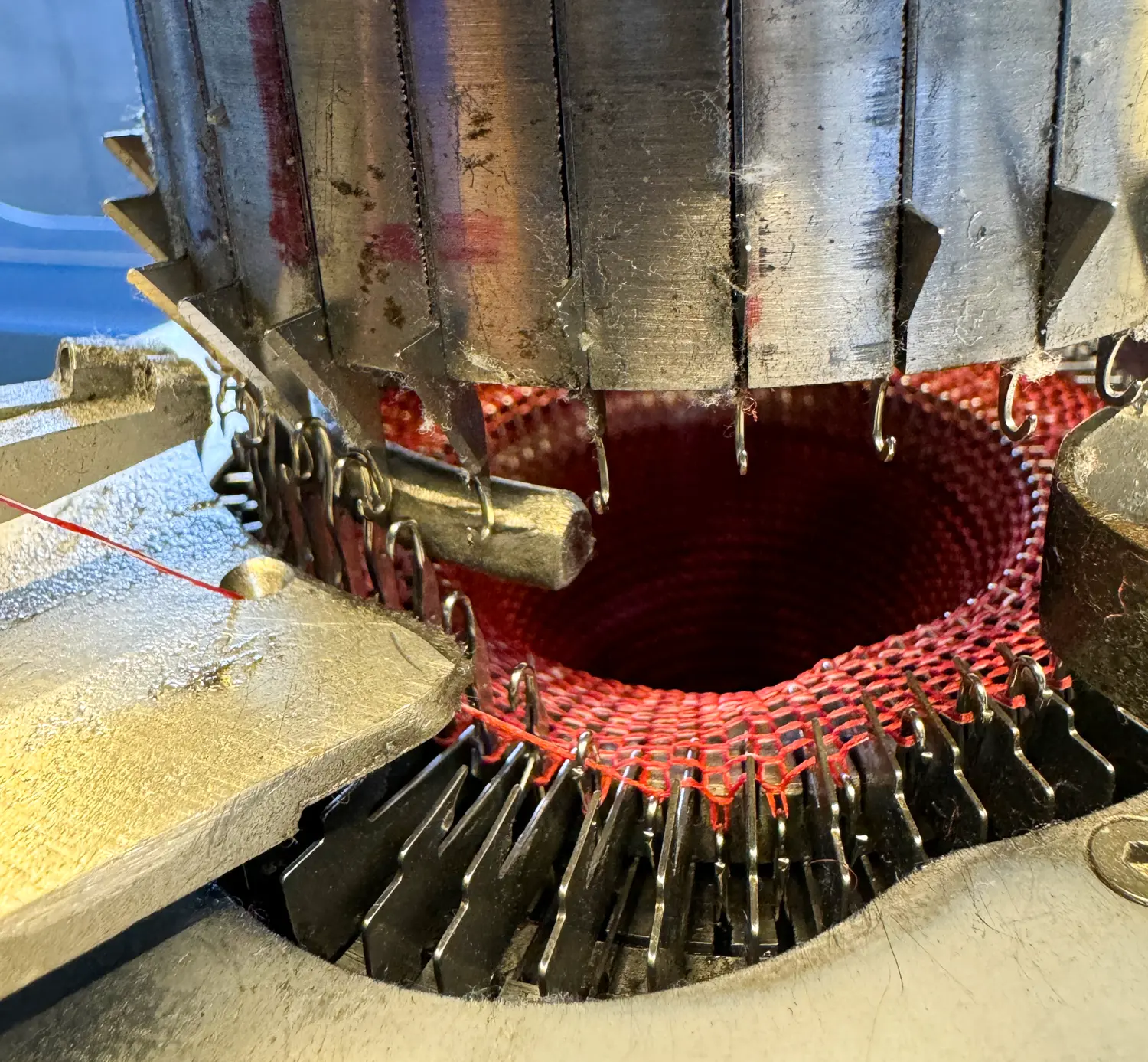

• Multi-color and pattern-capable knitting structure
⸻
Control & Electronics
• PLC: Delta DVP 14 SS2

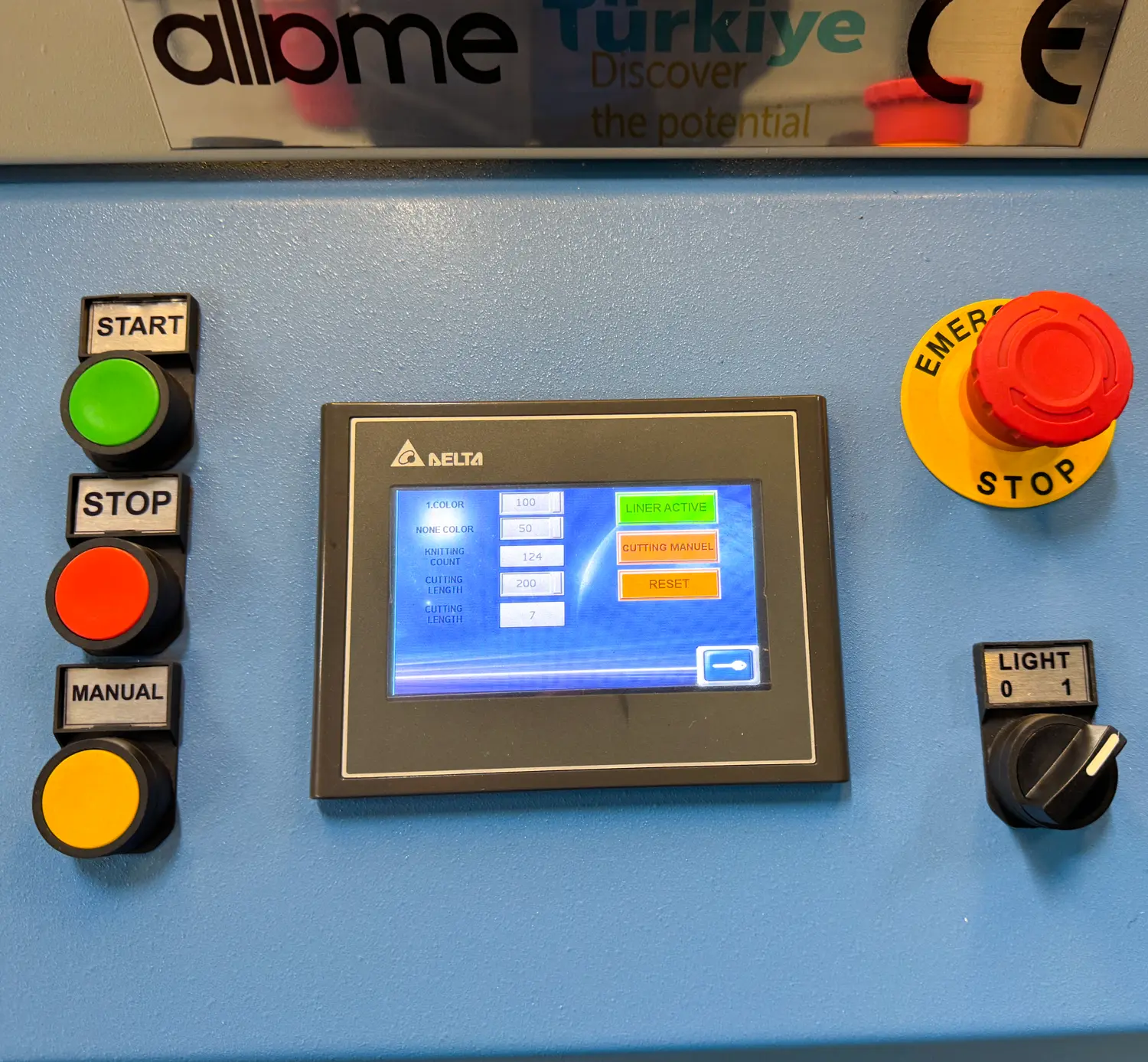

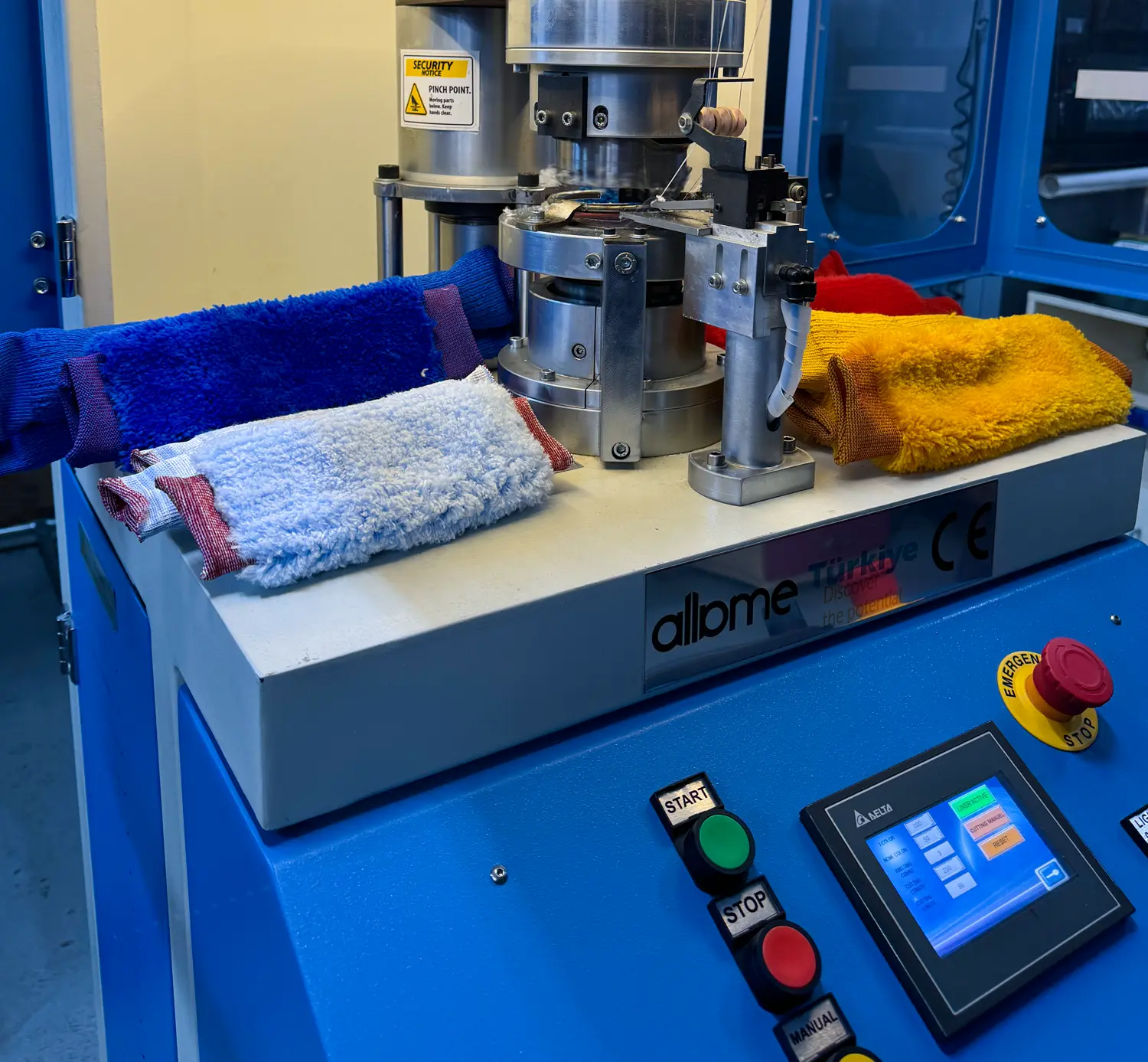

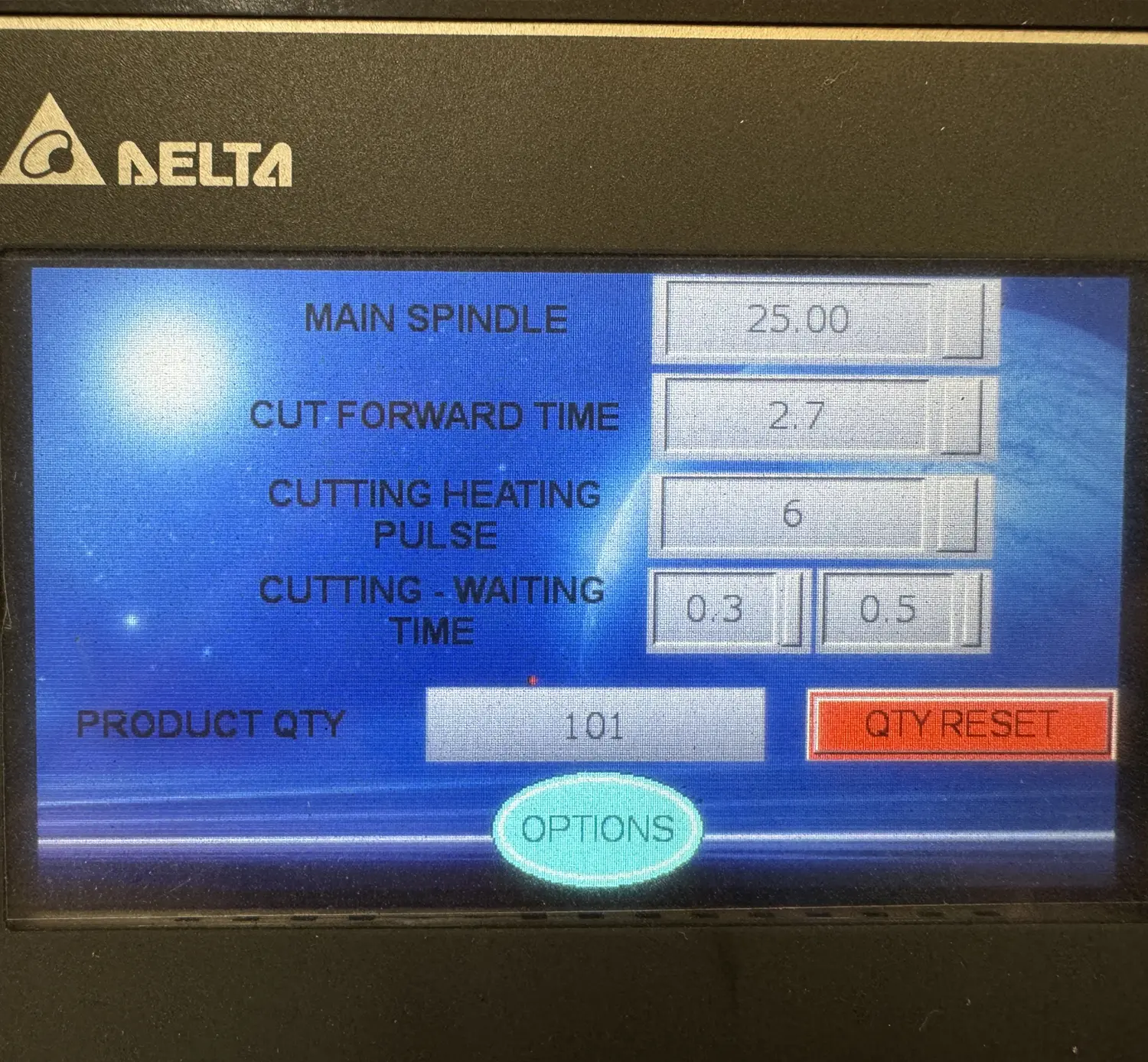

• Touch Panel: Delta DOP-B Series – 8” Touchmatic Panel
• Electronic Spindle Meter Encoder

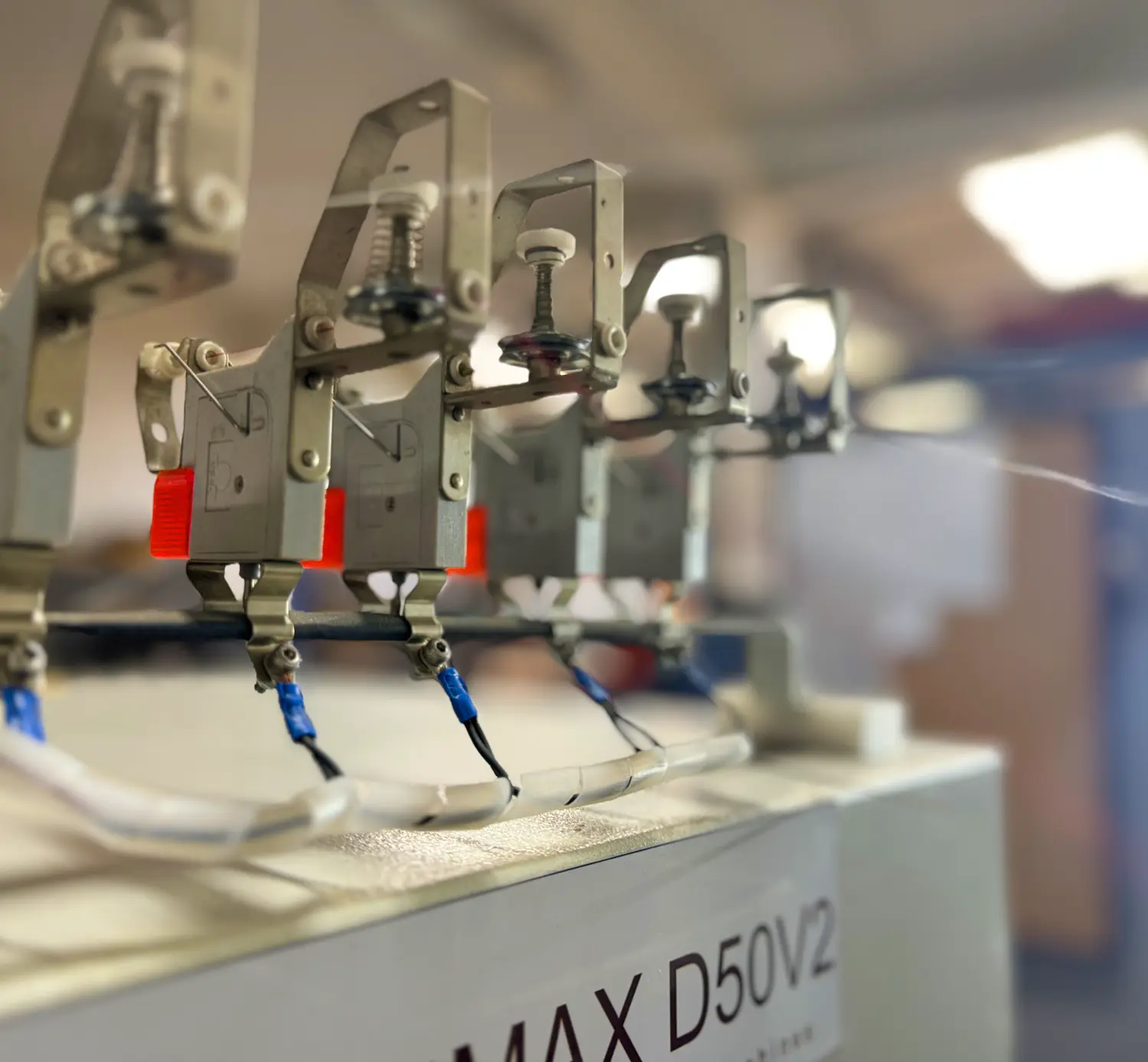

• Electronic Yarn Switching System
• Adjustable Parameters via Control Panel:
• Spindle Speed
• Roller Length
• Production Quantity Limit
• Color & Pattern Settings
• Product Quantity Counter
⸻
Dimensions & Weight
• Machine Width: 500 mm
• Machine Length: 1200 mm
• Machine Height: 600 mm
• Total Weight: Approx. 180 kg
⸻
Warranty & Support
• Warranty Period: 1 Year
• Spare Parts Support: Up to 10 Years
